Wall Plus
2 Narrow Beams
2 Narrow Beams
25000h
Lifespan100-240Vca
Voltage (Vca)10W
Power40lm (20lm/20)
Luminous flux2° / 2°
Beam anglePATENTED PRODUCT
Designed with straight lines, these wall lights feature accurate light beams that provide a stylish lighting. With super defined 2º and 90ª effects and a recessed light source to reduce glare, it’s ideal to highlight walls and outdoor structures.
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,92 |
| Lifespan | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
| Voltage (Vca) | 100-240Vca |
X
| STL22735PTO/30 | Black | 100-240Vca | 3000K | 40lm (20lm/20lm) | 25000h |
| STL22735BR/30 | White | 100-240Vca | 3000K | 40lm (20lm/20) | 25000h |
Graphics

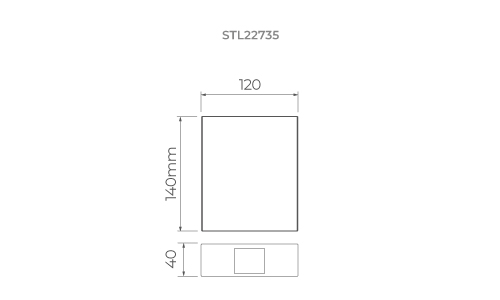

Technical drawing
Documents
STL22735PTO-30 - WALL PLUS - 2 FACHOS FECHADOS - FACHO 2.ies
STL22735PTO-30 - WALL PLUS - 2 FACHOS FECHADOS - FACHO 1.ies
STL22735BR_PTO_30.zip
Manual Arandela de Efeito Wall Plus_STL22733_STL22734_STL22735_STL22736_V1-0.pdf
STL22735BR-30 - WALL PLUS - 2 FACHOS FECHADOS - FACHO 2.ies
STL22735BR-30 - WALL PLUS - 2 FACHOS FECHADOS - FACHO 1.ies
Observations
Built-in driver.
