Reflex
Wall-Mounted Indirect Light
Wall-Mounted Indirect Light
25000h
Lifespan100-240Vca
Voltage (Vca)20W
Power1900lm
Luminous flux2 x 110°
Beam anglePATENTED PRODUCT
Stella’s Reflex wall-mounted light is sophisticated, timeless and brings harmony to environments. The product has a high luminous flux of indirect light, which reduces glare effects, providing greater visual comfort.
| Luminous efficacy | 68lm/W to 95lm/W |
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,92 |
| Lifespan | 25000h |
| Prevailing material | Aluminium |
| Warranty | 2 years |
| Voltage (Vca) | 100-240Vca |
X
| STH9741PTO/30 | Black | 100-240Vca | 3000K | 1450lm | 25000h |
| STH9741BR/27 | White | 100-240Vca | 2700K | 1800lm | 25000h |

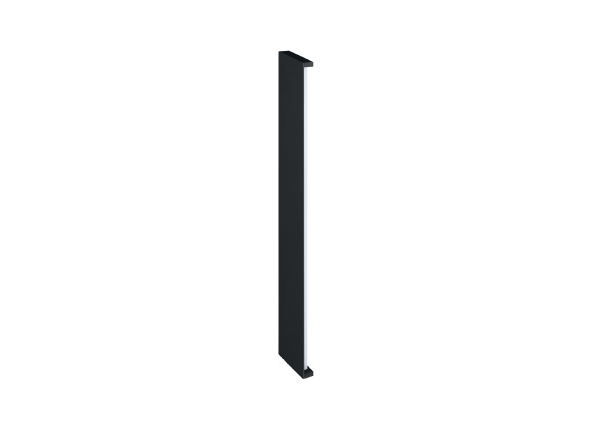

| STH9741PTO/27 | Black | 100-240Vca | 2700K | 1350lm | 25000h |
| STH9741BR/30 | White | 100-240Vca | 3000K | 1900lm | 25000h |
Graphics

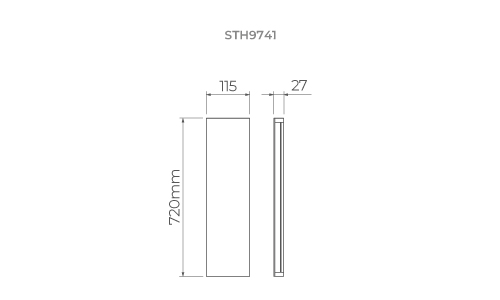

Technical drawing
Documents
STELLA - STH9741PTO-30 - REFLEX.ies
STH9741BR_27_PTO_27_STH9741BR_30_PTO_30.zip
Manual Arandela Reflex STH9740 STH9741 STH21740_V7.pdf
STELLA - STH9741BR-27 - REFLEX - ARANDELA DE LUZ INDIRETA 72cm.ies
STELLA - STH9741PTO-27 - REFLEX - ARANDELA DE LUZ INDIRETA 72cm.ies
STELLA - STH9741BR-30 - REFLEX.ies
Observations
Built-in driver.
Related products
Ice Long
25000h | 100-240Vca | 8W | 1050lm | 110° |
Wall-Mounted Light 70cm
Wall Mini
25000h | 100-240Vca | 5W | 200lm (100lm/100lm) | 70° / 70°° |
2 Wide Beams
Wall Mini
25000h | 100-240Vca | 5W | 20lm (10lm/10lm) | 4° / 4° |
2 Narrow Beams
Wall Plus
25000h | 100-240Vca | 5W | 260lm | 90° |
1 Wide Beam
Wall Plus
25000h | 100-240Vca | 10W | 520lm (260lm/260lm) | 90° / 90° |
2 Wide Beams
Wall Plus
25000h | 100-240Vca | 10W | 40lm (20lm/20) | 2° / 2° |
2 Narrow Beams
Ice | Square
25000h | 100-240Vca | 7,5W | 740lm | 120° |
Wall-Mounted Light
Ice | Rectangular
25000h | 100-240Vca | 5W | 540lm | 120° |
Wall-Mounted Light

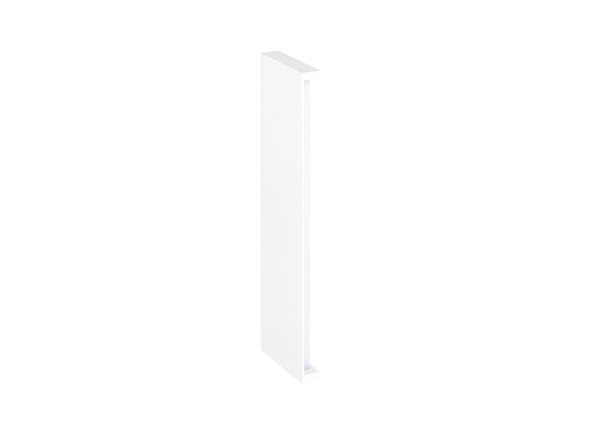

Reflex
