Wall Mini
2 Narrow Beams
2 Narrow Beams
25000h
Lifespan100-240Vca
Voltage (Vca)5W
Power20lm (10lm/10lm)
Luminous flux4° / 4°
Beam anglePATENTED PRODUCT
Wall-Mounted light with a striking light effect in a compact design.
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,92 |
| Lifespan | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
| Voltage (Vca) | 100-240Vca |
X
| STH9732BR/30 | White | 100-240Vca | 3000K | 20lm (10lm/10lm) | 25000h |
| STH9732PTO/30 | Black | 100-240Vca | 3000K | 20lm (10lm/10lm) | 25000h |
Graphics

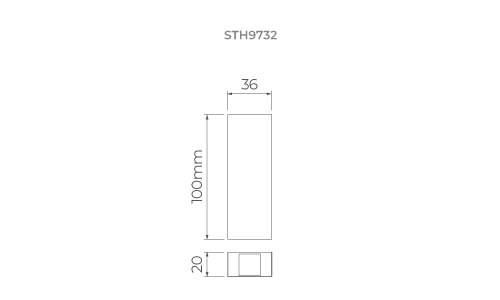

Technical drawing
Documents
Observations
Indicated accessory: Mini Junction Box - STH7799, sold separately.
Built-in driver.
