Ice | Square
Wall-Mounted Light
Wall-Mounted Light
25000h
Lifespan100-240Vca
Voltage (Vca)7,5W
Power740lm
Luminous flux120°
Beam anglePATENTED PRODUCT
The Ice wall-mounted light deliver a perfect light distribution throughout its whole body, in a clean and elegant design, providing a comfortable and homogeneous lighting. Product with IP65 Protection Index.
| Luminous efficacy | 98lm/W to 104lm/W |
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,5 |
| Lifespan | 25000h |
| Prevailing material | Polycarbonate |
| Warranty | 2 years |
| Voltage (Vca) | 100-240Vca |
X
| STL21700BR/30 | White | 100-240Vca | 3000K | 740lm | 25000h |
| STL21700BR/40 | White | 100-240Vca | 4000K | 760lm | 25000h |
| STL21700BR/50 | White | 100-240Vca | 5000K | 780lm | 25000h |
Video
Not added.
Graphics

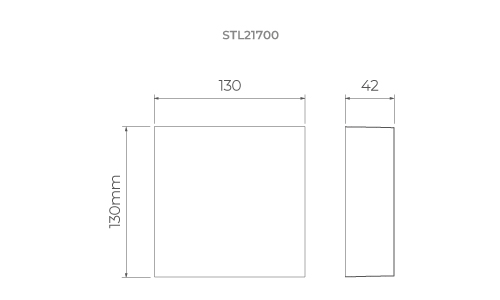

Technical drawing
Documents
Photos
Not added.
Observations
Built-in driver.
