Reflex
Wall-mounted Indirect Light
Wall-mounted Indirect Light
25000h
Lifespan100-240Vca
Voltage (Vca)6W
Power500lm
Luminous flux2 x 110°
Beam anglePATENTED PRODUCT

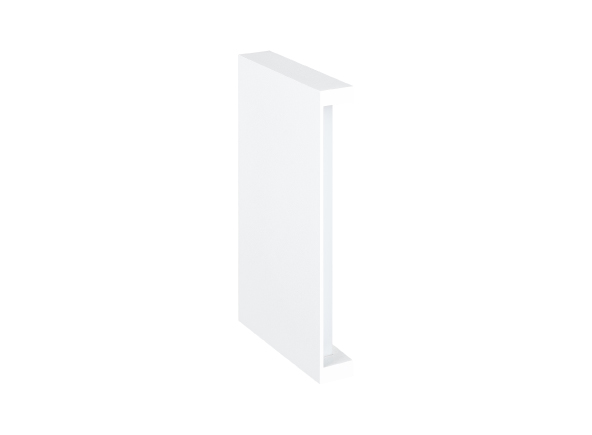

Stella’s Reflex wall-mounted light is sophisticated, timeless and brings harmony to environments. The product has a high luminous flux of indirect light, which reduces glare effects, providing greater visual comfort.
| Luminous efficacy | 58lm/W to 83lm/W |
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,6 |
| Lifespan | 25000h |
| Prevailing material | Aluminium |
| Warranty | 2 years |
| Voltage (Vca) | 100-240Vca |
X
| STH21740BR/30 | White | 100-240Vca | 3000K | 500lm | 25000h |
| STH21740PTO/30 | Black | 100-240Vca | 3000K | 400lm | 25000h |
| STH21740BR/27 | White | 100-240Vca | 2700K | 450lm | 25000h |
| STH21740PTO/27 | Black | 100-240Vca | 2700K | 350lm | 25000h |
Graphics

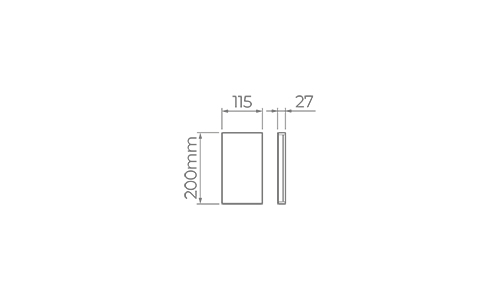

Technical drawing
Documents
STELLA - STH21740BR-30 - REFLEX - ARANDELA DE LUZ INDIRETA 20cm.ies
STH21740BR_27_PTO_27_STH21740BR_30_PTO_30.zip
Manual Arandela Reflex STH9740 STH9741 STH21740_V7.pdf
STELLA - STH21740PTO-30 - REFLEX - ARANDELA DE LUZ INDIRETA 20cm.ies
STELLA - STH21740BR-27 - REFLEX - ARANDELA DE LUZ INDIRETA 20cm.ies
STELLA - STH21740PTO-27 - REFLEX - ARANDELA DE LUZ INDIRETA 20cm.ies
Observations
Built-in driver.
