RECOGNIZER
WALL-MOUNTED INDIRECT LIGHT
WALL-MOUNTED INDIRECT LIGHT
7W
Power420lm
Luminous flux120°
Beam angle
A unique light effect to distinguish any space: that's what the Recognizer Wall-Mounted Indirect Light brings to the table. Recognizer's indirect lighting elevates the sensation of comfort wherever the product's applied. This product's IP65 Protection makes it ideal for external spaces. Available in 3000K temperature color.
| Luminous efficacy | 60lm/W and 67lm/W |
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,7 |
| Lifespan | 25000h |
| Prevailing material | Aluminum |
| Warranty | 2 years |
X
| STH9726/30 | Black | 3000K | 420lm |
| STH5726/30 | White | 3000K | 470lm |
Graphics

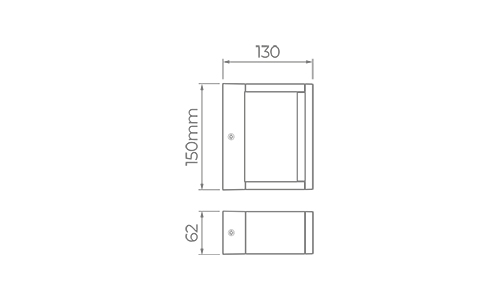

Technical drawing
Documents
Observations
Built-in driver.
