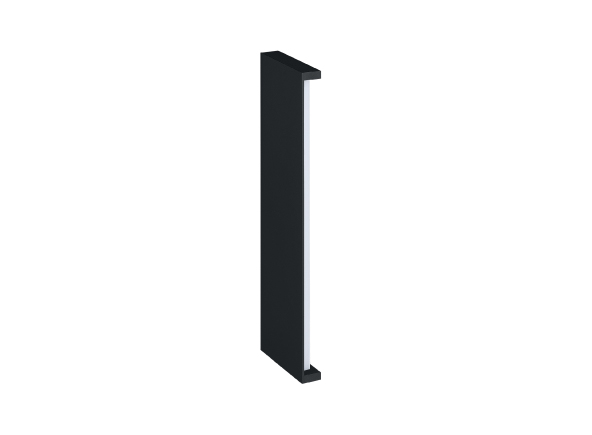

Reflex
Wall-Mounted Indirect Light
Wall-Mounted Indirect Light
12W
Power1100lm
Luminous flux2 x 110°
Beam anglePATENTED PRODUCT
Stella’s Reflex wall-mounted light is sophisticated, timeless and brings harmony to environments. The product has a high luminous flux of indirect light, which reduces glare effects, providing greater visual comfort.
| Luminous efficacy | 67lm/W to 92lm/W |
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,9 |
| Lifespan | 25000h |
| Prevailing material | Aluminium |
| Warranty | 2 years |
X
| STH9740PTO/30 | Black | 3000K | 850lm |
| STH9740BR/30 | White | 3000K | 1100lm |
| STH9740BR/27 | White | 2700K | 1050lm |
| STH9740PTO/27 | Black | 2700K | 800lm |
Graphics

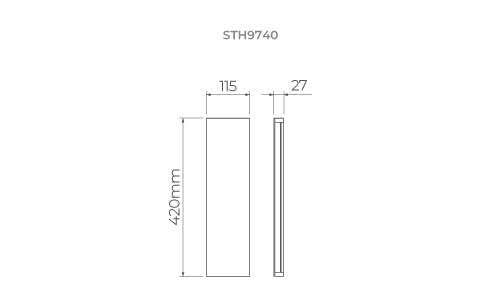

Technical drawing
Documents
STELLA - STH9740PTO-30 - REFLEX.ies
STH9740BR_27_PTO_27_STH9740BR_30_PTO_30.zip
Manual Arandela Reflex STH9740 STH9741 STH21740_V7.pdf
STELLA - STH9740BR-30 - REFLEX.ies
STELLA - STH9740BR-27 - REFLEX - ARANDELA DE LUZ INDIRETA 42cm.ies
STELLA - STH9740PTO-27 - REFLEX - ARANDELA DE LUZ INDIRETA 42cm.ies
Photos
Not added.
Observations
Built-in driver.
