Wall Max
2 Narrow Beams
2 Narrow Beams
25000h
Lifespan100-240Vca
Voltage (Vca)15W
Power90lm (45lm/45lm)
Luminous flux4° / 4°
Beam anglePATENTED PRODUCT
To produce an optimal light effect, this wall light features a distinguished construction, more robust and built in aluminum. The long reach of the light beam is ideal for façade applications, producing super def ined 4° and 90° effects. All this with a recessed light source and the signature visual comfort provided by Stella products.
| CRI (Color rendering index) | >80 |
| Ingress protection rating (IP) | IP65 |
| Power factor | >0,92 |
| Lifespan | 25000h |
| Prevailing material | Aluminium |
| Warranty | 2 years |
| Voltage (Vca) | 100-240Vca |
X
| STL22738PTO/30 | Black | 100-240Vca | 3000K | 90lm (45lm/45lm) | 25000h |
| STL22738BR/30 | White | 100-240Vca | 3000K | 90lm (45lm/45lm) | 25000h |
Graphics

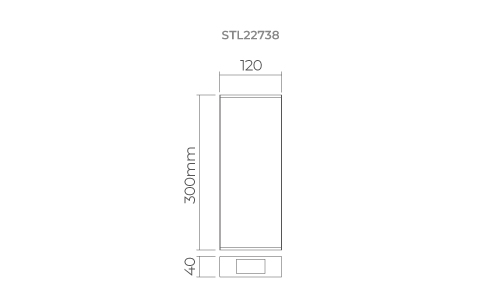

Technical drawing
Documents
STL22738PTO-30 - WALL MAX - 2 FACHOS FECHADOS - FACHO 2.ies
STL22738PTO-30 - WALL MAX - 2 FACHOS FECHADOS - FACHO 1.ies
STL22738BR_PTO_30.zip
Manual Arandela de Efeito Wall Max_STL22737_STL22738_V1-0.pdf
STL22738BR-30 - WALL MAX - 2 FACHOS FECHADOS - FACHO 2 .ies
STL22738BR-30 - WALL MAX - 2 FACHOS FECHADOS - FACHO 1 .ies
Observations
Built-in driver.
